Viscous coupling unit (VCU) seizure
The VCU commonly seizes with age or from mismatched tyres, forcing front and rear axles to fight each other in corners. All four tyres should be the same make, model and similar tread depth.
Freelander · L314 · 1998–2006
Freelander 1 parts and spares
The original compact Freelander, launched in South Africa in 1998 and later offered with the Td4 turbodiesel and the KV6 petrol.
Freelander 1 parts by system
Each system page explains what is specific to the Freelander 1 before you narrow down to the part.
Freelander 1 engine parts 1 known issue in this system
Freelander 1 brakes
Freelander 1 suspension
Freelander 1 electrical

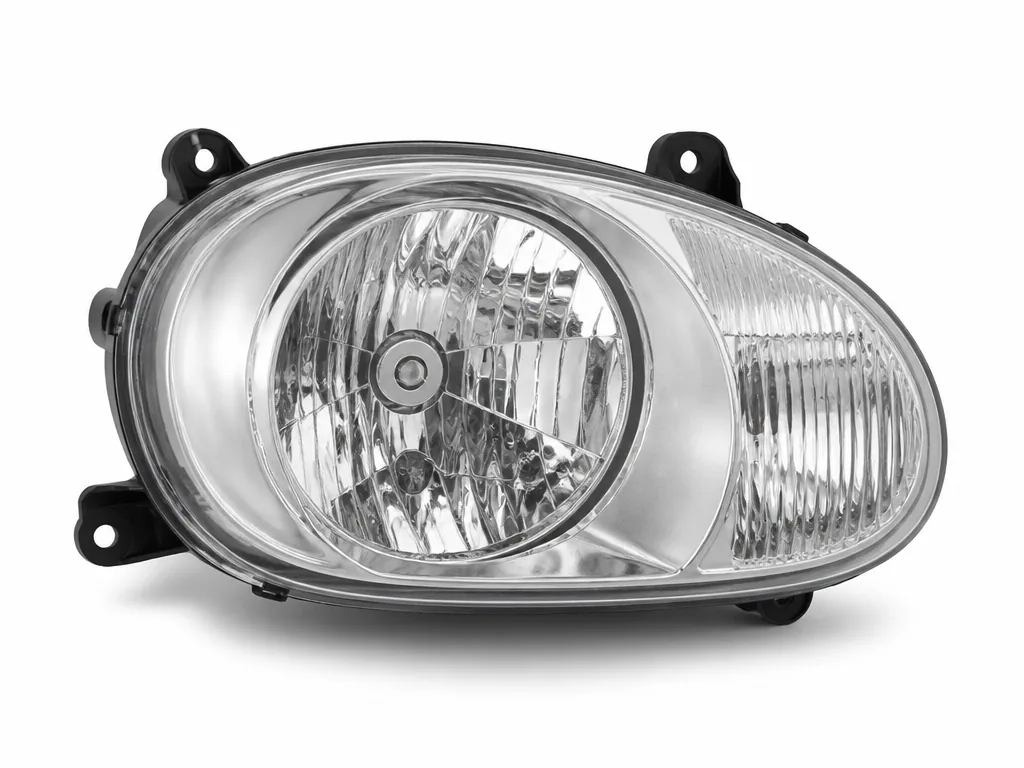

Freelander 1 lighting
Freelander 1 exhaust
Freelander 1 transmission 2 known issues in this system
Freelander 1 cooling
Freelander 1 fuel system

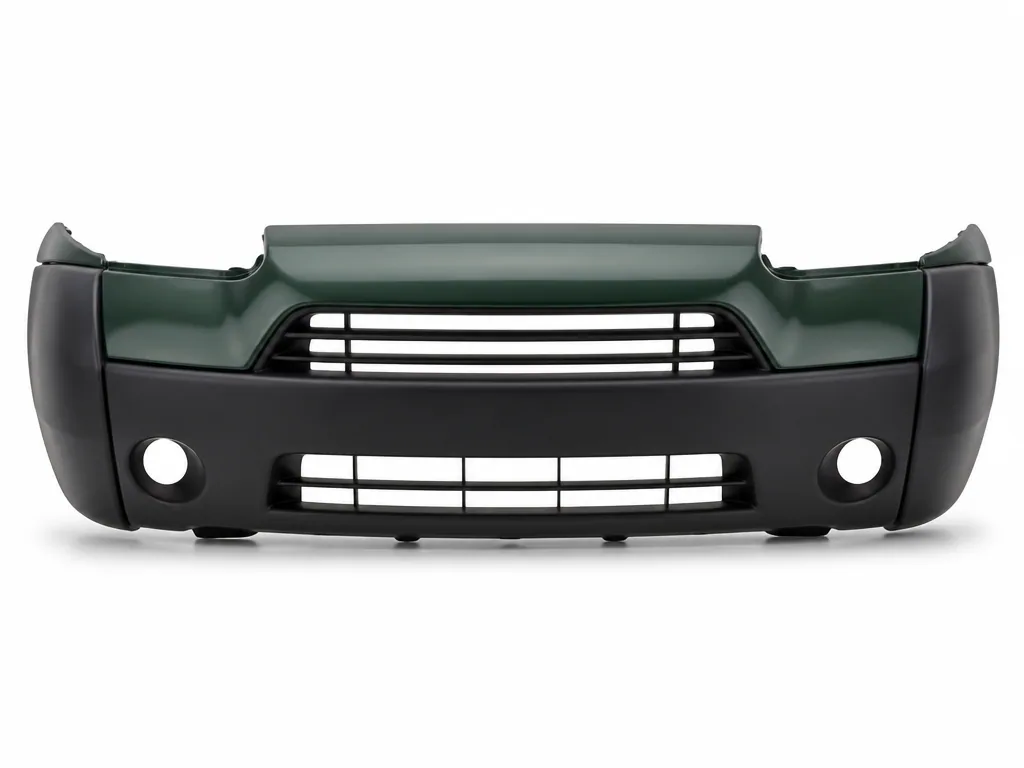

Freelander 1 body parts
Freelander 1 interior 1 known issue in this system
Parts commonly needed for the Freelander 1
Freelander 1 owners mainly ask for driveline parts: viscous coupling units, IRDs, propshaft bearings and rear differentials, often after a failure caused by mismatched tyres. KV6 head gaskets, cooling system parts, and Td4 turbos and injectors follow. Suspension struts, wheel bearings and brake parts are routine orders. Many owners also look for a good used or reconditioned IRD rather than new. Tell us Td4 or KV6 and three- or five-door when you enquire. Before replacing a failed IRD, check that all four tyres match in make, size and wear, because a mismatch that destroyed the first unit will destroy the next one. A VCU test at the same time is sensible.
About the Freelander 1
The Freelander made a big impact on the South African market when it was introduced in 1998, bringing the Land Rover badge to a compact SUV price point for the first time. Locally it is best remembered in Td4 turbodiesel form and as the KV6, which shared its Rover-designed all-alloy V6 with the Rover 75 and came only with a five-speed Steptronic automatic. It was never a low-range off-roader: drive reaches the rear wheels through a viscous coupling unit and an intermediate reduction drive, and those two components are the heart of most Freelander 1 parts enquiries. The VCU stiffens with age, and mismatched tyres make the problem worse by forcing the front and rear axles to turn at slightly different speeds. The strain then breaks the weakest part of the driveline, very often the IRD. The KV6 engine has its own reputation for cooling and head gasket trouble. The Freelander also earned a local reputation for reliability niggles, so owners who still run one tend to be practical and cost-conscious. When you ask for a quote, give us the VIN, engine and whether it is a three-door or five-door body.
Freelander 1 engines
Engine parts are rarely shared between these units, so quote the engine code or number with every engine-related enquiry.
| Engine | Code / family | Fuel |
|---|---|---|
| 2.0 Td4 turbodiesel | Td4 | Diesel |
| 2.5 KV6 petrol | KV6 | Petrol |
Known Freelander 1 problems
The faults owners and specialists report most often on this generation, and where to look for the parts involved.
Intermediate reduction drive (IRD) failure
A tight VCU overloads the IRD, and oil starvation or water ingress through worn seals destroys its bearings. VCU and IRD failures often happen together.
KV6 head gasket problems
The KV6 is known for cylinder liners that can slip in the block, and for thermostat and expansion tank failures that let it overheat and damage the head gaskets. Watch the coolant level and temperature closely.
Early reliability niggles
CAR magazine noted readers complaining about poor reliability, and on the Td4 automatic test car the plastic gear-lever gaiter panel was prone to popping off.
Keeping a Freelander 1 running
The Freelander 1's four-wheel drive depends on the viscous coupling unit (VCU) and intermediate reduction drive (IRD), so the most important maintenance is keeping all four tyres matched in make, size and tread depth and checking the VCU for binding. Check the IRD oil level and look for leaks, because oil starvation and water ingress kill its bearings. On the KV6 petrol, watch coolant levels closely for signs of head gasket trouble.
Freelander 1 questions
Why did my Freelander 1 IRD fail?
The usual cause is a stiff or seized viscous coupling unit, which forces the front and rear axles to turn at different speeds in corners and overloads the IRD. Mismatched tyres make this worse. Oil starvation or water ingress through worn seals also destroys IRD bearings. Replace or test the VCU and match the tyres when fitting a new IRD, or it may fail again.
What engines did the Freelander 1 have in South Africa?
Locally the Freelander 1 is best known with the 2.0 Td4 turbodiesel and the 2.5 KV6 petrol. CAR magazine's 2005 road test notes the KV6 shared its Rover-designed all-alloy V6 with the Rover 75 and came only with a five-speed Steptronic automatic.
Other Freelander models
Need a part for your Freelander 1?
Send the part name, your VIN and engine number. The SparesBoyz parts team checks fitment for your L314 before quoting.
